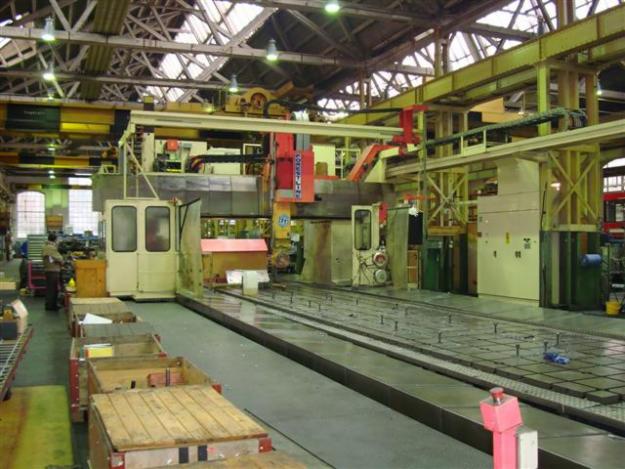

Forest line majormill 360 cnc gantry type milling machine

Categoría: Compra - Venta
Subcategoría: Comercio - Industria
Precio:
Llame para el precio
-FOREST LINE MAJORMILL 360 CNC GANTRY TYPE MILLING MACHINE
-Table 16000 x 2400 mm
-Passage between columns 3600 mm
-Max. working height 1800 mm
-Portal travel 16000 mm
-Transversal head travel 4150 mm
-Vertical head travel 1250 mm
-Spindle power 32 kw
-Spindle speeds 10 ÷ 2500 rpm
-Spindle taper ISO 50
-Total weight 85 tons
-CNC NUM 760 F - 5 AXIS
-Year 1992
-Retrofitting in 1988/2003.
-Complete with: -2 Birotative indexed heads: C=360°, 144 POS.; A=360°, 144 pos.
-1 Angular indexed head: C=360°, 144 pos.
-1 Internal head
-ATC 72 tools
-Automatic head changer
