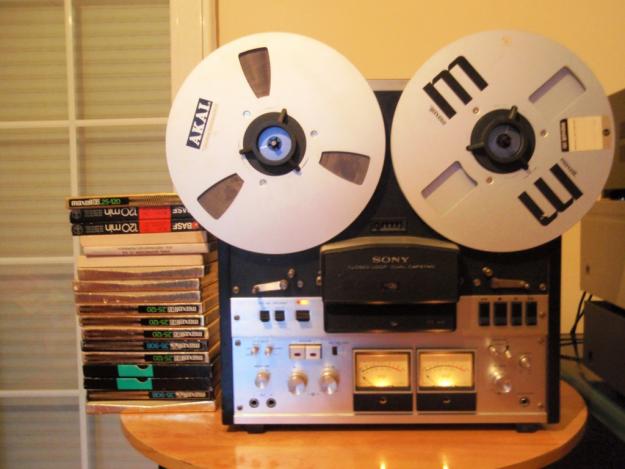

SONY TC-755 TAPE RECORDER (1973)
Categoría: Compra - Venta
Subcategoría: Fotografía - Imagen - Sonido
Subcategoría: Fotografía - Imagen - Sonido
Precio:
1.5€
- o -
Contactar al proveedor
Model
TC-755
Year
1973
Price when new (in the USA)
$699 (Audio magazine review, 1975)
Track system
quarter-track stereo
Heads
Ferrite & Ferrite record, F&F playback and erase
Motors
AC servo control capstan motor, 2 x 8-pole induction reel motors
Maximum reel size
10½"
Tape speeds
7½ and 3¾ ips
Frequency response (
3dB)
Sony SLH tape
7½ ips: 30Hz - 25kHz3¾ ips: 40Hz - 16kHz
Wow & flutter
less than 0.05%at 7½, less than 0.08% at 3¾ ips
Signal to noise ratio
53 dB (normal tape) 56 dB (SLH tape)
Distortion
less than 1.2%
Semi-conductors
56 transistors, 1 IC, 2 FETS, 41 diodes
Inputs
mic - low impedance, -72 dB (0.2mV)line - 100k ohm impedance, -22 dB (60mV)DIN - 3.9k ohm impedance
Outputs
line - 100k ohm impedance, -5 dB (430mV)DIN - 8.2k ohm impedance, -5 dB (430mV)headphones - 8 ohm
Dimensions
17.2 x 17.75 x 8.7" (435 x 451 x 221mm)
Weight
52lb 15oz (24 kg)
TC-755
Year
1973
Price when new (in the USA)
$699 (Audio magazine review, 1975)
Track system
quarter-track stereo
Heads
Ferrite & Ferrite record, F&F playback and erase
Motors
AC servo control capstan motor, 2 x 8-pole induction reel motors
Maximum reel size
10½"
Tape speeds
7½ and 3¾ ips
Frequency response (
3dB)
Sony SLH tape
7½ ips: 30Hz - 25kHz3¾ ips: 40Hz - 16kHz
Wow & flutter
less than 0.05%at 7½, less than 0.08% at 3¾ ips
Signal to noise ratio
53 dB (normal tape) 56 dB (SLH tape)
Distortion
less than 1.2%
Semi-conductors
56 transistors, 1 IC, 2 FETS, 41 diodes
Inputs
mic - low impedance, -72 dB (0.2mV)line - 100k ohm impedance, -22 dB (60mV)DIN - 3.9k ohm impedance
Outputs
line - 100k ohm impedance, -5 dB (430mV)DIN - 8.2k ohm impedance, -5 dB (430mV)headphones - 8 ohm
Dimensions
17.2 x 17.75 x 8.7" (435 x 451 x 221mm)
Weight
52lb 15oz (24 kg)
